It is a high air proof standard connectors of J30J, the performance standard is the same with J30J, and the data of air leakage rate for : 1.0×10-3Pa．cm3/s.

brief introduction
Receptacle

brief introduction

top ↑

?It is a high air proof standard connectors of J30J, the performance standard is the same with J30J, and the data of air leakage rate for : 1.0×10^-3Pa.cm³/^s. The product with a single detail standard for Q/Lk 20073-2004?Detail Standard of J30JM Subminiature Rectangular Connectors?.

Receptacle

top ↑

?J30JM1-9?15?21?25?31?37?51ZKS
The picture of product

J30JM1-9ZKS	J30JM1-31ZKS

J30JM1-51ZKS

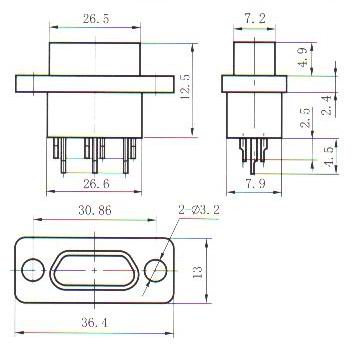

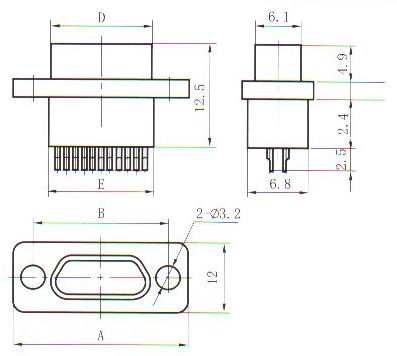

Product outline dimensions

J30JM1-9~37ZKS	J30JM1-51ZKS
Note: the thickness of rubber washer on the flange is(see the picture of product)1mm.

Dimensions	A	B	D	E
J30JM1-9ZKS	19.6	14.3	9.8	9.9
J30JM1-15ZKS	23.5	18.2	13.7	13.8
J30JM1-21ZKS	27.4	22	17.4	17.6
J30JM1-25ZKS	29.8	24.5	20	20.2
J30JM1-31ZKS	33.6	28.3	23.8	24
J30JM1-37ZKS	37.4	32.2	27.7	27.8
J30JM1-51ZKS	See the picture of product outline dimensions
