J24H type –C plug connectors ConnectorTotal > CONNECTORS > D-SUB (Rectangle) > J24H series > J24H type –C plug connectors
J24H type –C plug connectors Connector
The outer with cable clamp, pull for locking, push for loosing. Contacts and cables is crimp contact and solder contact, the product can be put in pin and socket.
Brief introductionJ24H type –C plug connectors J24H type –C plug connectorstop ↑
J24H type –C plug connectors J24H type –C plug connectors

Contacts and cables is solder contact or crimp contact;
Pull for locking, push for loosing;
The product can be put in pin or socket.

J24H type –C plug connectors J24H type –C plug connectors

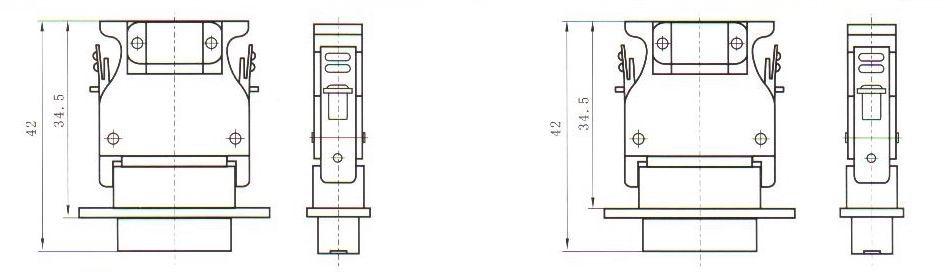

Product Outline DimensionsJ24H type –C plug connectors J24H type –C plug connectorstop ↑
J24H type –C plug connectors J24H type –C plug connectors
J24H-9、15、19、25、26、37、38、51、52、74ZK
J24H-9、15、19、25、26、37、38、51、52、74ZJ
J24H-9、15、19、25、26、37、38、51、52、74ZKH
 J24H-9、15、19、25、26、37、38、51、52、74ZJH
The picture of product
J24H type –C plug connectors Connectors Product Outline DimensionsJ24H type –C plug connectors Connectors Product Outline Dimensions
J24H-51TJ×-C
JJ24H-74TK×-C
Product Outline Dimensions
J24H type –C plug connectors Connectors Product Outline Dimensions J24H type –C plug connectors Connectors Product Outline Dimensions



J24H type –C plug connectors J24H type –C plug connectors
The Picture of ConnectorJ24H type –C plug connectors J24H type –C plug connectorstop ↑
J24H type –C plug connectors J24H type –C plug connectors

J24H type –C plug connectors Connectors The Picture of Connector
J24H-□T××-C――J24H-□Z××                                                                                        J24H-□T××-C――J24H-□Z××

J24H type –C plug connectors J24H type –C plug connectors

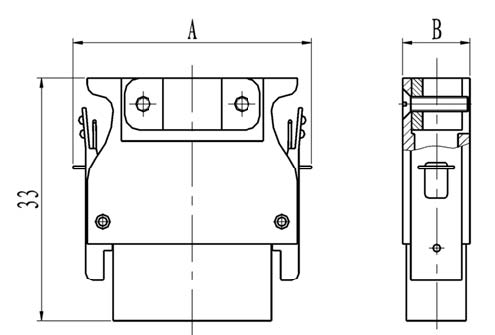

Outline Dimensions of crimp contact PlugJ24H type –C plug connectors J24H type –C plug connectorstop ↑
J24H type –C plug connectors J24H type –C plug connectors

How To Order
A
B
J24H-9TJ-C/ J24H-9TK-C
25
8
J24H-15TJ-C/ J24H-15TK-C
30
9
J24H-19TJ-C/ J24H-19TK-C
29
10
J24H-25TJ-C/ J24H-25TK-C
33
10
J24H-26TJ-C/ J24H-26TK-C
33
10
J24H-37TJ-C/ J24H-37TK-C
40
10
                                  J24H-38TJ-C/ J24H-38TK-C    40      10
                                 J24H-51TJ-C/ J24H-51TK-C    49      10
                                 J24H-52TJ-C/ J24H-52TK-C    49      10
J24H-74TJ-C/ J24H-74TK-C
51
11.6

J24H type –C plug connectors J24H type –C plug connectors

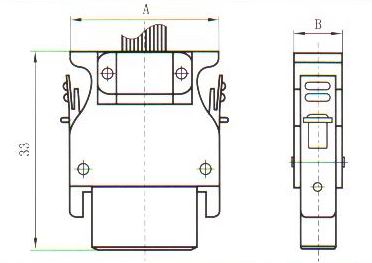

Outline Dimensions of solder contact Plug J24H type –C plug connectors J24H type –C plug connectorstop ↑
J24H type –C plug connectors J24H type –C plug connectors
How To Order
A
B
J24H-9TJH-C/ J24H-9TKH-C
25
8
J24H-15TJH-C/ J24H-15TKH-C
30
9
J24H-19TJH-C/ J24H-19TKH-C
29
10
                                  J24H-25TJH-C/ J24H-25TKHC-C     33    10
J24H-26TJH-C/ J24H-26TKHC-C
33
10
                                J24H-37TJH-C/ J24H-37TKH-C     40    10
J24H-38TJH-C/ J24H-38TKH-C
40
10
                                   J24H-51TJH-C/ J24H-51TKH-C     49   10
J24H-52TJH-C/ J24H-52TKH-C
49
10
J24H-74TJH-C/ J24H-74TKH-C
51
11.6
