J29A in-line contact for PCB Connector
Contacts and PCB is in-line contact , and the PCB pattern is 1.91×1.65reseau
brief introductionJ29A in-line contact for PCB J29A in-line contact for PCB top ↑
J29A in-line contact for PCB J29A in-line contact for PCB

  ?The PCB pattern is 1.91×1.65reseau(line×row);


J29A in-line contact for PCB J29A in-line contact for PCB
panel cutoutsJ29A in-line contact for PCB J29A in-line contact for PCB top ↑
J29A in-line contact for PCB J29A in-line contact for PCB
  Panel cutouts see “Panel cutouts of J29A connectors”.



J29A in-line contact for PCB J29A in-line contact for PCB
Outline Dimensions of PlugJ29A in-line contact for PCB J29A in-line contact for PCB top ↑
J29A in-line contact for PCB J29A in-line contact for PCB

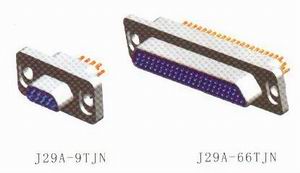

  ?J29A-9?15?25?37?51?66TJN
The picture of product
J29A in-line contact for PCB Connectors Outline Dimensions of Plug
 The outline dimensions of products

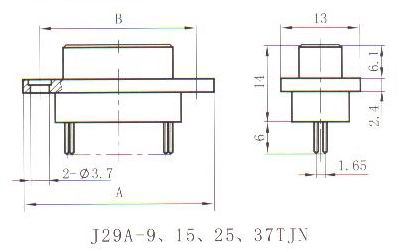

  ?the outline dimensions of J29A-9?15?25?37TJN
J29A in-line contact for PCB Connectors Outline Dimensions of Plug
How To Order
A
B
J29A-9TJN
26.1
20.1
J29A-15TJN
31.6
25.6
J29A-25TJN
42
36
J29A-37TJN
53.5
47.5

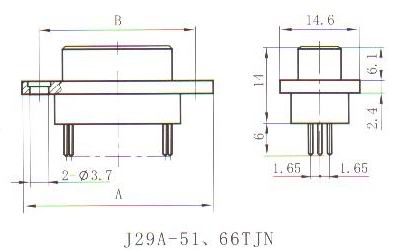

  ?the outline dimensions of J29A-51?66TJN
J29A in-line contact for PCB Connectors Outline Dimensions of Plug
How To Order
A
B
J29A-51TJN
52
46
J29A-66TJN
61.5
55.5
J29A in-line contact for PCB J29A in-line contact for PCB
Outline Dimensions of ReceptacleJ29A in-line contact for PCB J29A in-line contact for PCB top ↑
J29A in-line contact for PCB J29A in-line contact for PCB

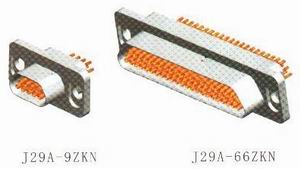

  ? J29A-9?15?25?37?51?66ZKN
 The picture of product
J29A in-line contact for PCB Connectors Outline Dimensions of Receptacle
 The outline dimensions of products

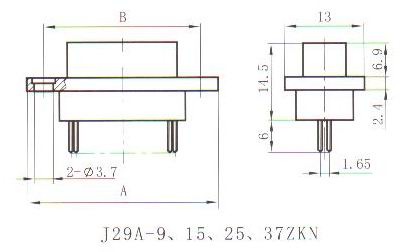

  ?the outline dimensions of J29A-9?15?25?37ZKN
J29A in-line contact for PCB Connectors Outline Dimensions of Receptacle
How To Order
A
B
J29A-9ZKN
26.1
20.1
J29A-15ZKN
31.6
25.6
J29A-25ZKN
42
36
J29A-37ZKN
53.5
47.5

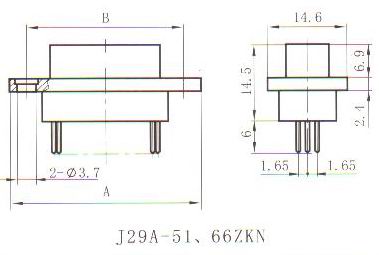

  ?the outline dimensions of J29A-51?66ZKN
J29A in-line contact for PCB Connectors Outline Dimensions of Receptacle
How To Order
A
B
J29A-51ZKN
52
46
J29A-66ZKN
61.5
55.5

J29A in-line contact for PCB J29A in-line contact for PCB
