Male-to-female twins Connector
Spec: 9P-9S/15P-15S/25P-25S/37P-37S
Male-to-female twins Male-to-female twins
specificationMale-to-female twins Male-to-female twins top ↑
Male-to-female twins Male-to-female twins
MATERIAL
Insulator:PBT UL 94V-0
Contact:Brass,gold/Tin plated or gold plated
Shell:cold roller steel,Nickel plated
ENVIRONMENTAL
Operating temperature:-55?-+105?
ELECTRICAL
Contact current rating:5 Amp
Dielectric withstanding volt:AC 1000V/min.R.M.S
Insulation resistange:>5000MOMIN.AT 500V DC
Contact resistance:25M O MAX
Male-to-female twins Male-to-female twins
Product Outline DimensionsMale-to-female twins Male-to-female twins top ↑
Male-to-female twins Male-to-female twins
    ? the picture of product
Male-to-female twins  Connectors Product Outline DimensionsMale-to-female twins  Connectors Product Outline Dimensions

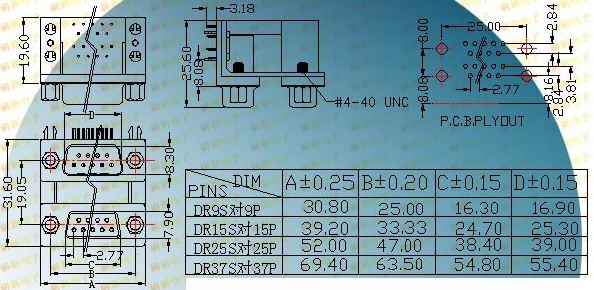

    ? Product Outline Dimensions
Male-to-female twins  Connectors Product Outline Dimensions
