J42 series Connector
Series J42,Micro-Rectangular, Electrical Connector
Product solid pictureJ42 series J42 seriestop ↑
J42 series J42 series
J42 series Connectors Product solid picture
J42 series J42 series
Brief introductionJ42 series J42 seriestop ↑
J42 series J42 series
This series of connectors conform to MIL-C-83513 are recently developed. They have the characteristics of diversity in sizes and of high reliability, so they are suitable for connection of    apparatus, instruments and cables.
J42 series J42 series
specificationJ42 series J42 seriestop ↑
J42 series J42 series
Current rating
2A
Contact resistance
less than 0.008 ohm in normal conditions
less than 0.010 ohm after aging test
Insulation resistance
1000 megohms in normal conditions
10 megohms in wet conditions
Dielectric withstanding voltage
500V in normal conditions
250V in wet conditons
Durability
500 cycles
J42 series J42 series
Product Outline DimensionsJ42 series J42 seriestop ↑
J42 series J42 series

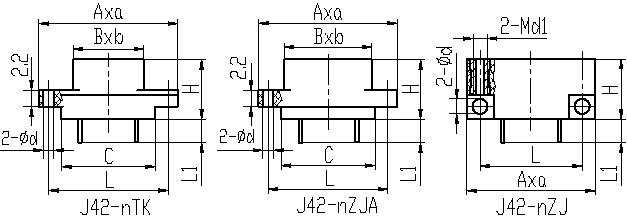

Model and size, dimension of outline and mount
J42 series Connectors Product Outline Dimensions
 Note: L1—length of cable( according to consumer demands)
Type
A
B
C
L
H
a
b
d
d1
Notes
J42-15TK
23
11.8
13
18
9
5.4
3.2
2.2
-
-
J42-25TK
30
18.8
20
25
9
5.4
3.2
2.2
-
-
J42-33TK
31.6
17.4
19
25.1
9
6.5
4.4
2.8
-
Developing
J42-45TK
37.2
23
24.6
30.7
9
6.5
4.4
2.8
-
Developing
J42-51TK
40
25.8
27.4
33.5
9
6.5
4.4
2.8
-
-
J42-15ZJA
23
13.9
13.4
18
9
5.4
5.4
2.2
-
Developing
J42-25ZJA
30
20.9
20.4
25
9
5.4
5.4
2.2
-
-
J42-33ZJA
31.6
19.5
19
25.1
9
6.5
6.5
2.8
-
Developing
J42-45ZJA
37.2
25.1
24.6
30.7
9
6.5
6.5
2.8
-
Developing
J42-51ZJA
40
27.9
27.4
33.5
9
6.5
6.5
2.8
-
-
J42-15ZJ
23
-
-
18
9
5.4
-
2.2
2
-
J42-25ZJ
30
-
-
25
9
5.4
-
2.2
2
Developing
J42-33ZJ
31.6
-
-
25.1
9
6.5
-
2.8
2.5
Developing
J42-45ZJ
37.2
-
-
30.7
9
6.5
-
2.8
2.5
Developing
J42-51ZJ
40
-
-
33.5
9
6.5
-
2.8
2.5
Developing
J42 series J42 series
Environmental ConditionJ42 series J42 seriestop ↑
J42 series J42 series
Operating temperature range
-55- +125oC
Relative humidity
up to 90%-95% at 40+2,-2oC
Atmospheric pressure
101.3kPa-1.33Pa
Vibration
196m/s2 from 10-2000Hz
Shock
735m/s2
Acceleration
735m/s2
J42 series J42 series
PerformanceJ42 series J42 seriestop ↑
J42 series J42 series

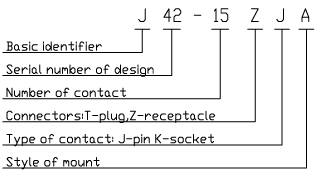

Model interpretation and performed specification
J42 series Connectors Performance
Type of product
Code name of executing specification
J42
Q/Jc129-95
J42 series J42 series
