JRC-5M Hermetically sealed electromagnetic relays
The product is characterized by small volume, with high electrical apparatus specification standard.
Product solid pictureJRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays top ↑
JRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays
JRC-5M Hermetically sealed electromagnetic relays Relays Product solid picture
JRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays
brief introductionJRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays top ↑
JRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays
The product is characterized by small volume, with high electrical apparatus specification standard. They are suitable for high density contact for PCB, and it is used in the fields of air and space and the other industry for handing signal and switch circuit.
JRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays
specificationJRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays top ↑
JRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays

Contact arrangement
2Z
Operating  time(ms)
=6
Power dissipation of winding(W)
=0.25
Release time(ms)
=4
Contact Resistance(O)
Before life
=0.15
Contact rating
resistive:
   high lever:1A,28Vd.c.
    low lever: 10~50μA
            10~50mVd.c.
After life
=0.5
Insulation Resistance
(MO)
Under normal condition
=500
Under high temperature and high humidity
=5
Dielectric Strength
Vr.m.s.(50Hz)
Under normal condition
350
Durability
1×105 times
Under low atmospheric pressure
150
weight(g)
=6

JRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays
how to orderJRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays top ↑
JRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays
JRC-5M Hermetically sealed electromagnetic relays Relays how to order
????= Part No.
????=product type

Enterprise standard code:Q/LJ.J (02) 113
JRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays
Environmental ConditionJRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays top ↑
JRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays
No.
Item
Data
1
Ambient Temperature Range(?)
-55~+85
2
Relative Humidity
Up to 98% at +40?
3
Low atmospheric pressure(kPa)
4.39
4
Vibration
Frequency range(Hz)
10~500
Acceleration(m/s2)
60
5
Shock
Acceleration(m/s2)
300
Pulse duration(ms)
11
6
Acceleration(m/s2)
250
JRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays
Main Technical DataJRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays top ↑
JRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays
Part No.
Cable voltage
25?
Temperature range
Rating
(Vd.c.)
Max
(Vd.c.)
Cable resistanceO±10%
Max operating voltage (Vd.c.)
Minimum release voltage (Vd.c.)
Max operating voltage (Vd.c.)
Minimum release voltage (Vd.c.)
LJ4.523.171
27
32
3000
19.2
1.0
24
0.75
LJ4.523.171
24
28
3000
18.0
1.0
22.5
0.75
LJ4.523.172
12
15
750
9.0
1.0
11.25
0.75
LJ4.523.169
6
7.5
200
4.5
0.5
5.6
0.38
LJ4.523.170
3
3.8
50
2.2
0.2
2.75
0.15
?having no relays sealed by laser at present?
JRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays
Outline Mounting Dimensions and Bottom View CircuitJRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays top ↑
JRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays

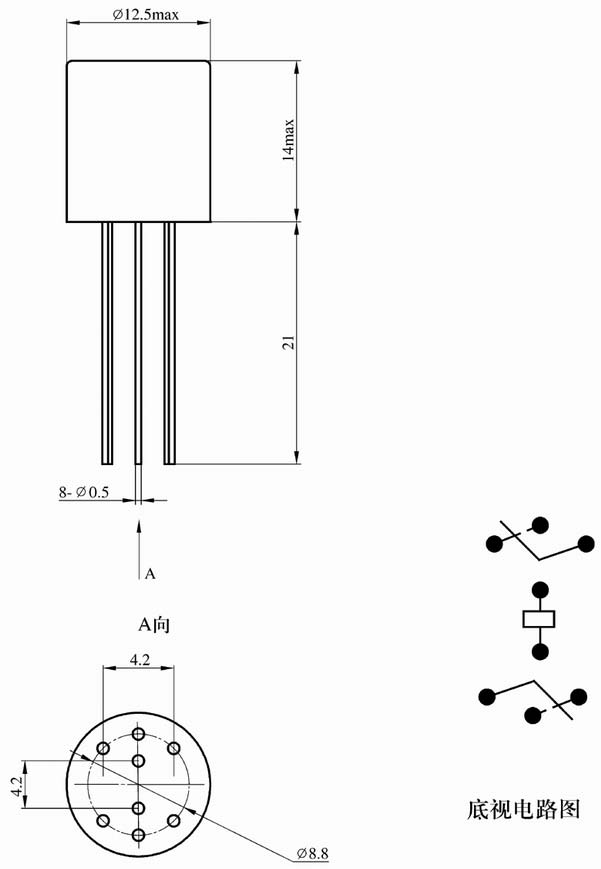

JRC-5M Hermetically sealed electromagnetic relays Relays Outline Mounting Dimensions and Bottom View Circuit
?????=bottom view circuit
JRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays
Load CharacteristicsJRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays top ↑
JRC-5M Hermetically sealed electromagnetic relays JRC-5M Hermetically sealed electromagnetic relays

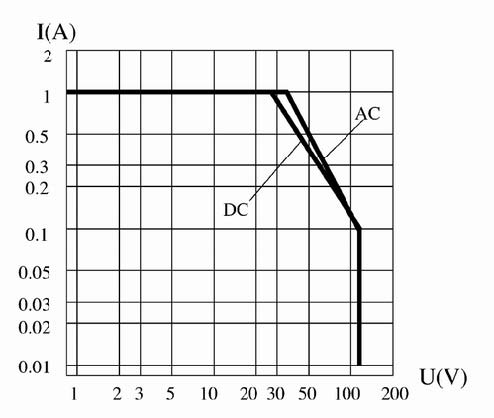

JRC-5M Hermetically sealed electromagnetic relays Relays Load Characteristics
