Contact arrangement		4Z	Operating  time(ms)	=5
Power dissipation of winding(W)		=1(2)	Release time(ms)	=5

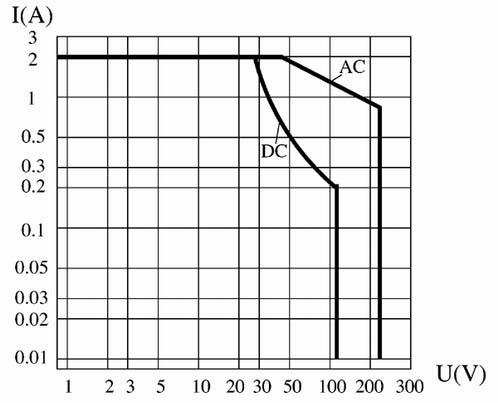

Contact Resistance(O)	Before life	=0.05	Contact rating	resistive:  high lever:2A,28Vd.c.           1A,28Vd.c. low lever:10~50μA,       10~50mVd.c.
	After life	=0.15
Insulation Resistance (MO)	Under normal condition	=500
	Under high temperature and high humidity	=10
Dielectric Strength Vr.m.s.(50Hz)	Under normal condition	500	Durability	high lever:2A:2×104 times       1A:1×105 times  low lever:1×105 times
	Under low atmospheric pressure	200	weight(g)	=11(10)

Part No.	Cable voltage		25?			Temperature range
	Rating   (Vd.c.)	Max (Vd.c.)	Cable resistanceO±10%	Max operating voltage (Vd.c.)	Minimum release voltage (Vd.c.)	Max operating voltage (Vd.c.)	Minimum release voltage (Vd.c.)
005	5	6	27	2.9	0.30	4.0	0.20
006	6	8	40(25)	3.6	0.45	5.0	0.3
012	12	15	150(100)	7.2	0.9	10.0	0.6
015	15	17	240	8.3	0.95	11.7	0.65
018	18	20	540	13.0	1.1	16.0	0.8
024	24	26(28)	640(310)	15(13.5)	1.8(1.5)	21(18.8)	1.2(1.0)
027	27	32	800(390)	15.0	1.8	21.0	1.2
note:in the()is the main technical data of JZC-062M ?If you need the other types of winding voltage, connect us?
