JRW-3M hermetically sealed electromagnetic relays
The product is duel lines and in-line contact relay.
Product solid pictureJRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relaystop ↑
JRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relays
JRW-3M hermetically sealed electromagnetic relays Relays Product solid picture
JRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relays
brief introductionJRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relaystop ↑
JRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relays
The product is duel lines and in-line contact relay, and is characterized by small volume, light weight, and get round structure, high sensitive. They are suitable for high density contact for PCB, and it is used in the fields of air and space and the other industry for handing signal and switch circuit.
JRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relays
specificationJRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relaystop ↑
JRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relays

Contact arrangement
2Z
Contact arrangement
=4
Power dissipation of winding(W)
=0.25
Power dissipation of winding(W)
=2
Contact Resistance(O)
Before life
=0.1
Contact rating
resistive:
High lever:0.5A,35Vd.c.
low lever: 10~50μA
      10~50mVd.c.
After life
=0.5
Insulation Resistance
(MO)
Under normal condition
=500
Under high temperature and high humidity
=10
Dielectric Strength
Vr.m.s.(50Hz)
Under normal condition
300
Durability
High lever:5×104 times
low lever:1×105 times
Under low atmospheric pressure
150
weight(g)
=6

JRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relays
how to orderJRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relaystop ↑
JRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relays
JRW-3M hermetically sealed electromagnetic relays Relays how to order
????=environmental lever
????= Part No.
????=product type
Enterprise standard code:Q/LJ.J(02)118
JRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relays
Environmental ConditionJRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relaystop ↑
JRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relays
No.
Item
Data
1
Environmental level
B
A
2
Ambient Temperature Range(?)
-55~+85
3
Relative Humidity
Up to 95% at +40?
4
Low atmospheric pressure(kPa)
4.39
5
Vibration
Frequency range(Hz)
10~500
10~2000
         Acceleration(m/s2)          60
150
6
Shock
Acceleration(m/s2)
500
        750
Pulse duration(ms)
11
6
7
Acceleration(m/s2)
250
500
8
Random vibration(m/s2)2/Hz
10
JRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relays
Main Technical DataJRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relaystop ↑
JRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relays

Part No.
Cable voltage
25?
Temperature range
Rating
(Vd.c.)
Max
(Vd.c.)
Cable resistanceO±10%
Max operating voltage (Vd.c.)
Minimum release voltage (Vd.c.)
Max operating voltage (Vd.c.)
Minimum release voltage (Vd.c.)
LJ4.523.173
5;6
6;7
200
3.5
0.5
4.55
0.35
LJ4.523.174
9;12
11;14
520
5.5
0.8
7.15
0.56
LJ4.523.175
24;27
26;30
3400
15.0
2.0
19.5
1.40
?If you need the other types of winding voltage, connect us?

JRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relays

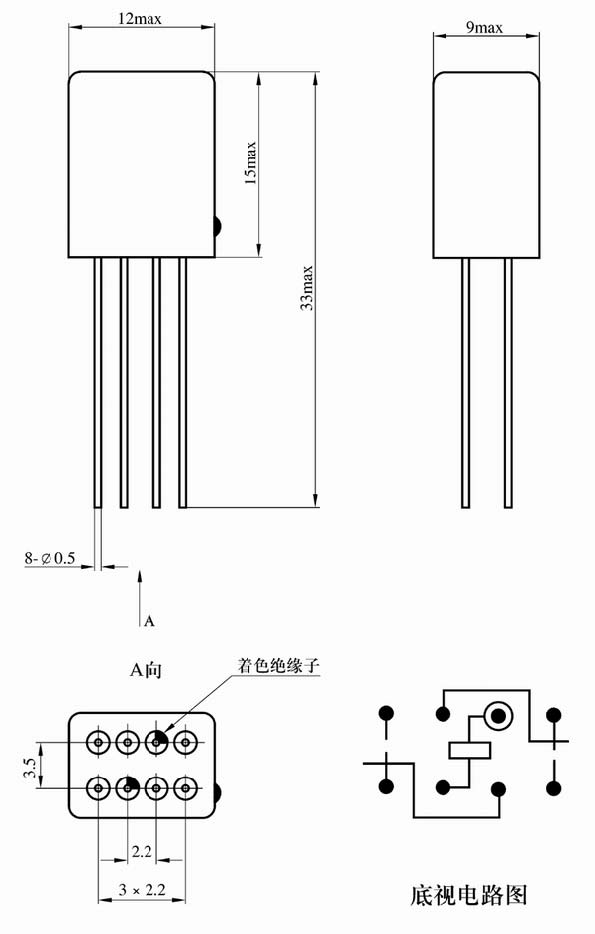

Outline Mounting Dimensions and Bottom View CircuitJRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relaystop ↑
JRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relays
JRW-3M hermetically sealed electromagnetic relays Relays Outline Mounting Dimensions and Bottom View Circuit
?????=color up insulator     ?????=bottom view circuit
JRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relays

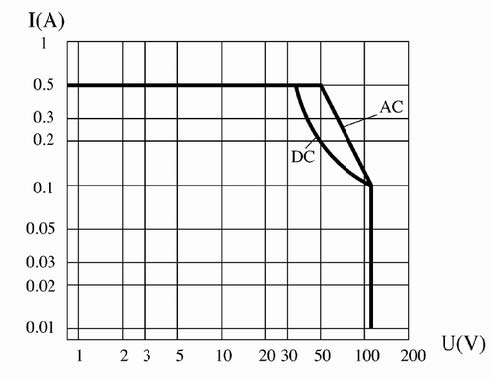

Load CharacteristicsJRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relaystop ↑
JRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relays
JRW-3M hermetically sealed electromagnetic relays Relays Load Characteristics
JRW-3M hermetically sealed electromagnetic relays JRW-3M hermetically sealed electromagnetic relays
